99-06 coilover kit (3link wishbone) for reverse lip wheels x12
99-06 coilover kit (3link wishbone) for reverse lip wheels x12
Couldn't load pickup availability

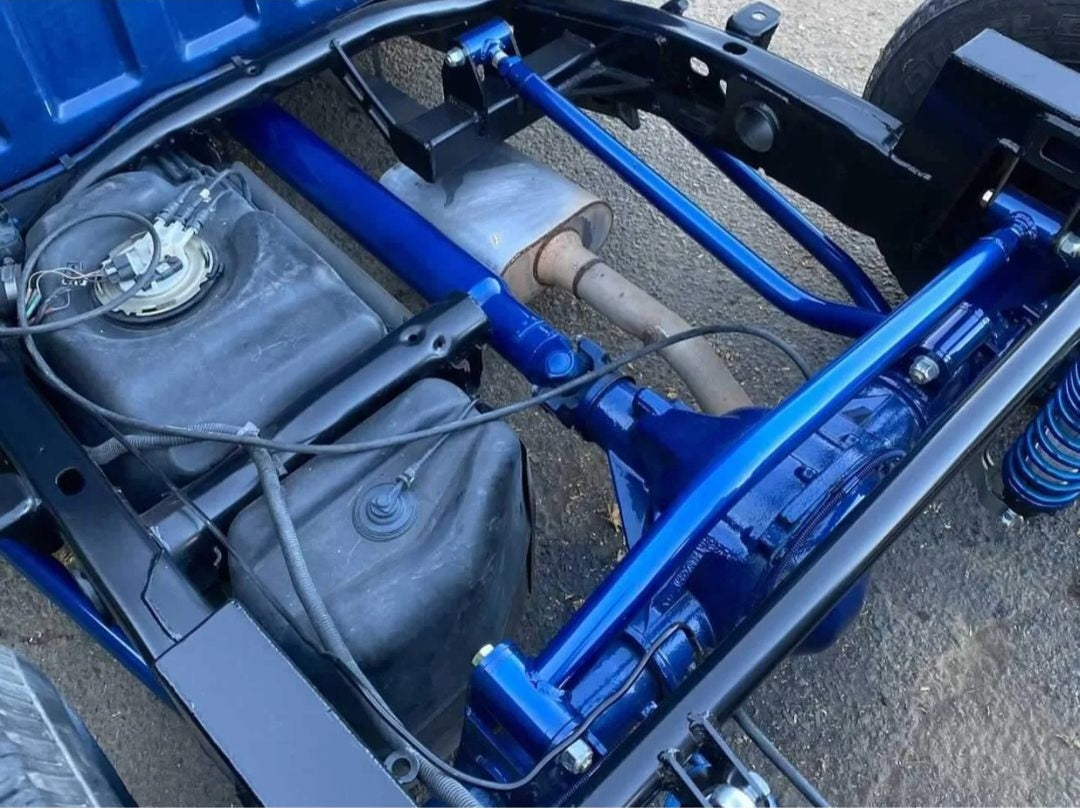

There are a few key features that set this kit apart. For one our pinion link was designed with bends to minimize the amount of notch cover (doghouse) needed especially on when running those big wide wheels. Wishbone is adjustable for pinion angle fine tuning. Also if you refer to the picture you will notice that we include a vehicle specific front link mount bracket, no more having to fabricate your own wishbone front mount saving you a ton of headache and money. Our lower link bars are designed to mount to the factory front leaf spring hangers and taper inward to allow for the big wheel clearance all while utilizing the factory fuel tank. Yes you read that right NO FUEL CELL NECCESARY. STEP NOTCH IS REQUIRED FOR THIS KIT
This kit clears up to 30" wheels, that includes x12 reverse lip billets. All links are constructed from 1 1/2" .188 wall DOM tubing. Bushing sleeves start as 2" 1/4 wall D.O.M. tubing that are then CNC machined down for a unique profile.
STEP NOTCHES ARE AVAILABLE BUT ARE NOT INCLUDED, REFER TO OUR "NOTCHES" CATEGORY ON THE WEBSITE DROP DOWN MENU.
This kit includes:
- Adjustable wishbone bent for clearances
- Lower tapered link
- Front link frame mount (specify cab of pickup)
- All necessary axle tabs and gussets cut from 1/4" thick P&O plate
- Bushings with sleeves
- Grade 8 hardware
We recommend QA1 DS501-12175 coilover for this specific kit.
IF NOT IN STOCK AT TIME OF PURCHASE, ALLOW FOR 2-4 WEEK BUILD TIME.
