88-98 Chevy/GMC Silverado Sierra Rear Wishbone 3 Link Air Suspension kit (up to 30" wheels)

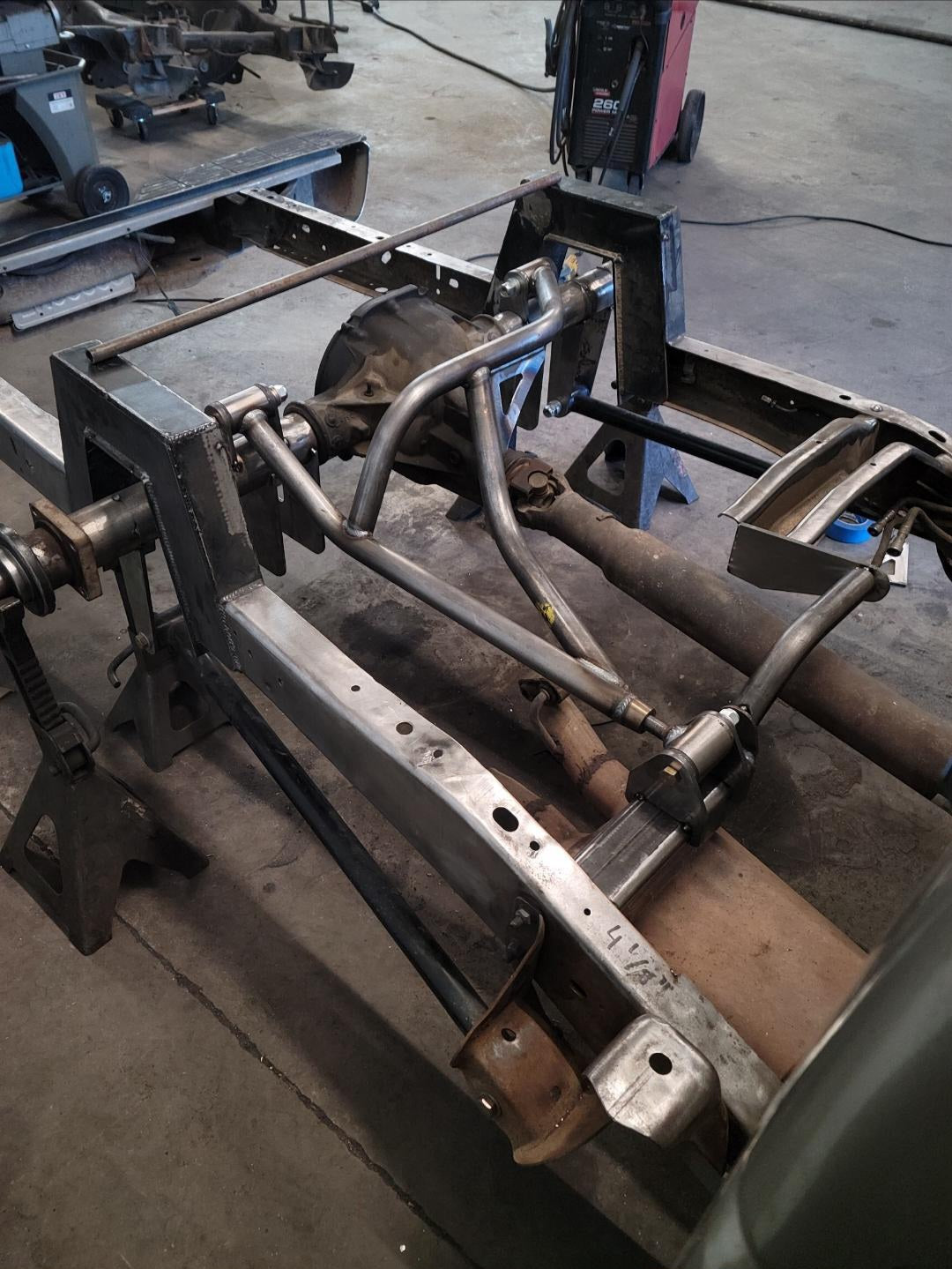

There are a few key features that set this kit apart. For one our wishbone was designed with bends to minimize the amount of notch cover (doghouse) needed especially on when running those big wide wheels. Another one that you may notice is that our wishbone has an adjustable end to fine tune your pinion angle if need be. You will get all of the necessary tabs and brackets to put your front wishbone mount / driveline bridge. Our lower link bars are designed to mount to the factory front leaf spring hangers and taper inward to allow for the big wheel clearance all while utilizing the factory fuel tank. Yes you read that right NO FUEL CELL NECCESARY.

This kit clears up to 30" wheels, that includes x12 billets. All links are constructed from 1 1/2" .188 wall DOM tubing. Bushing sleeves start as 2" 1/4 wall D.O.M. tubing that are then CNC machined down for a unique profile.

STEP NOTCHES ARE AVAILABLE BUT ARE NOT INCLUDED, REFER TO OUR "NOTCHES" CATEGORY ON THE WEBSITE DROP DOWN MENU.

This kit includes:

• Upper adjustable wishbone
• Lower tapered links
• Upper and lower shock bridge brackets
• Upper and lower bag behind axle bag brackets (designed for a 2600 series airbag)
• Front wishbone frame mount tabs
• All necessary axle tabs and gussets cut from 1/4" thick P&O plate
• Bushings with sleeves
• Grade 8 hardware

We recommend a Belltech 8510 shock for this specific kit.

IF NOT IN STOCK AT TIME OF PURCHASE, ALLOW FOR 2-4 WEEK BUILD TIME.
